琉璃板金属屋顶瓦滚压成型机 1220mm 进料宽度
- Glazed Sheet Metal Roof Tile Roll Forming Machine 1220mm Feeding Width is the customized design for Africa market, 1220mm feeding width with 815mm covered width. It suit for galvanized sheet and PPGI steel coil.
- 原产地:China
港口:Xiamen, China
材料厚度: 0.4-0.6mm
材料宽度: 1220mm
覆盖宽度: 815mm
成型道次: 16 Station
电机功率: 7.5KW
轴直径: 75mm - Contact Us
琉璃板金属屋顶瓦滚压成型机 1220mm 进料宽度
该琉璃板压瓦机专为生产镀铝锌钢板和彩涂钢板而设计，所有辊筒均采用数控车床加工，抛光后镀硬铬，这是为了增加辊筒的硬度和抗拉强度。 滚筒生锈。 有利于保证阶梯瓦屋顶表面光滑、美观。
琉璃板屋面瓦滚压成型机生产线由PLC系统控制，通过编码器来检测整条线的工作速度，它可以向PLC系统发出长度信号，然后所有的台阶瓦长度和钢瓦屋顶长度将是正确的 方面。

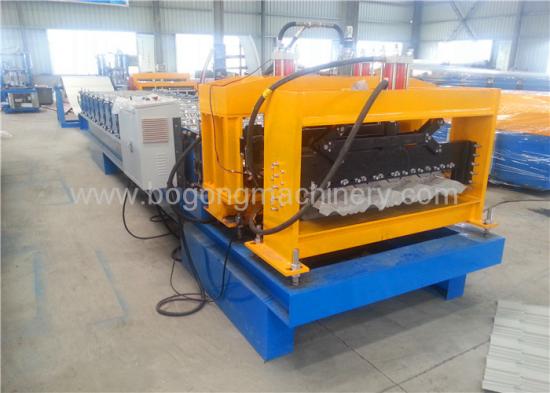

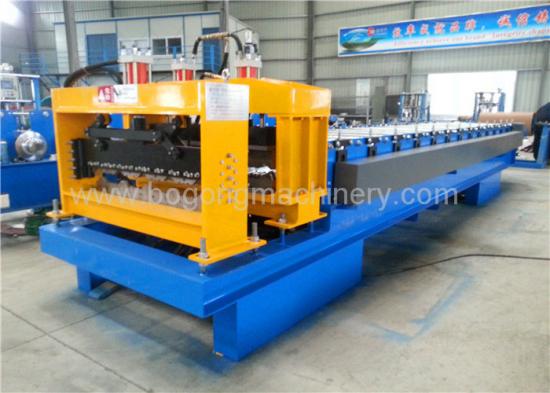

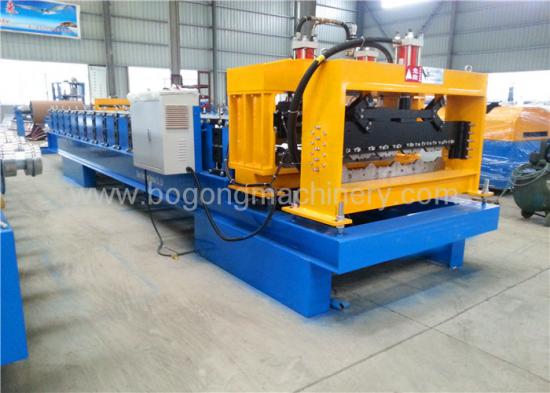

全琉璃瓦压瓦成型机成品端采用液压切割压紧系统，切割端面良好，无毛刺。

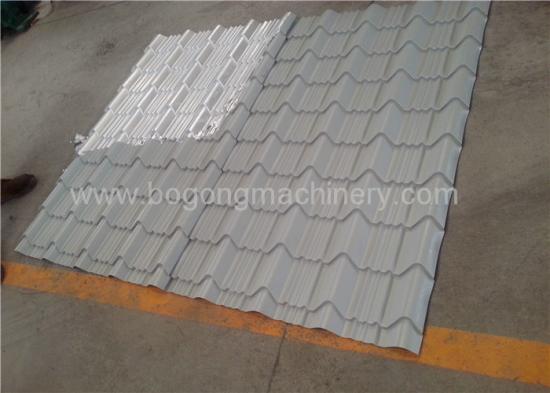

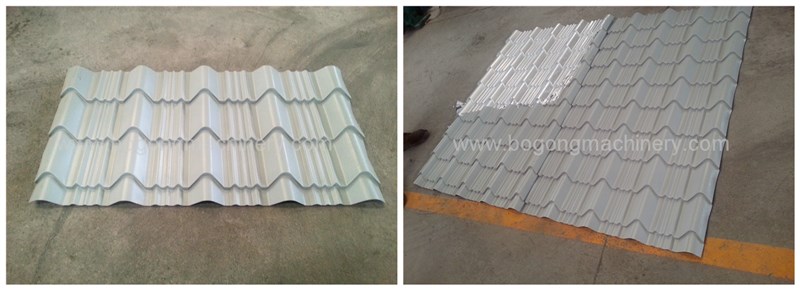

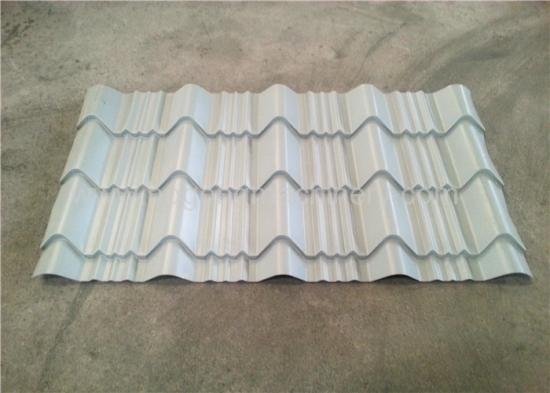

该琉璃板压瓦机设计为四夹，覆盖宽度815mm，原材料宽度1220mm。 整个屋面瓦表面光滑，两连接边也平整。
技术参数
|
Parameters |
Specification |
|
Voltage |
380V/50HZ/3PH/or customized |
|
Driving Motor |
7.5KW |
|
Forming Steps |
16 steps |
|
Working Speed |
3-5m/min |
|
Thickness for Steel |
0.4-0.6mm (Material:PPGI,GI Steel G550) |
|
Shaft Diameter |
75mm |
|
Shaft Material |
High grade 45# forged steel |
|
Roller Material |
G45# steel, CNC lathe,polished and chrome plated |
|
PLC Cabinet |
Schneider, Delta |
|
Encoder |
Omron |
|
Sprocket Wheel |
45 steel high-frequencies quench |
|
Cut-off System |
Post cutting, no waste cutting |
|
Cutting Blade Material |
Cr12 steel |
|
Machine Frame Material |
Fine welded structural steel; |
|
Roofing Material |
PPGI, GI steel G330-550 |
|
Painted Color |
Blue+Orange Or Customization |
|
Overall Size |
9600*1550*1650mm |
|
Weight |
7500KGS |
