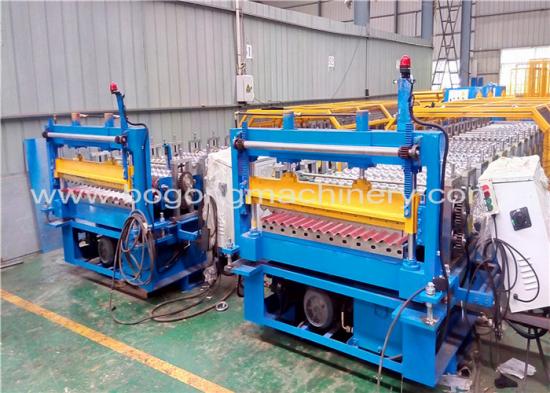

Product Name: YX18-75-1050 Corrugated Roof Panel Roll Forming Machine

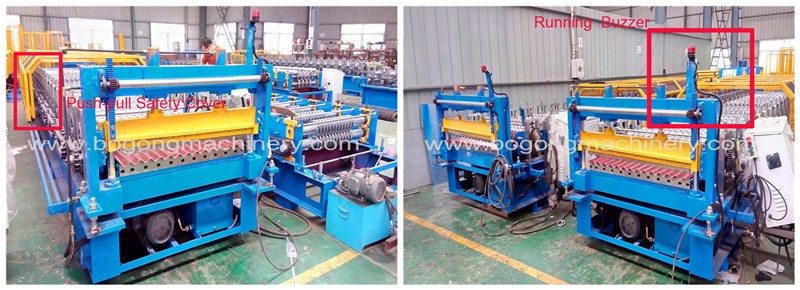

This is the high quality type of corrugated roof panel roll forming machine manufacture method. Whole roll forming sections are covered by grid type safety cover, it can be pushed forward or backward, so when workers need to go inside for maintain roll forming machines or problems, we can push the safety cover to the other end. It is much convenient for use.

We have installed the running indicator at the end of cutting section also. When the roll forming machine power supply has been switched on, this indicator will be light. So before the worker needs to go to machine inside to check machines, he should check the this indicator and ensure safe enough at first.

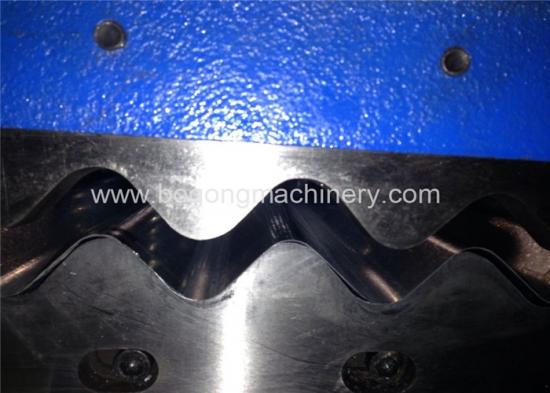

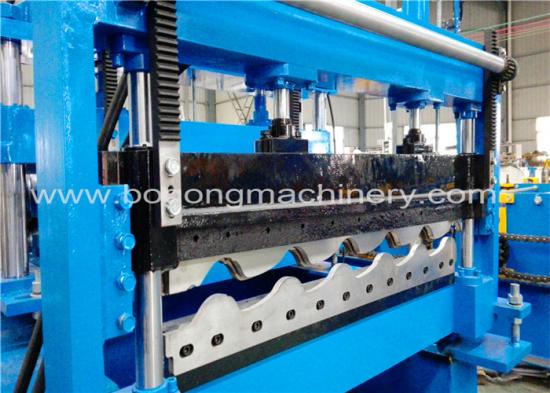

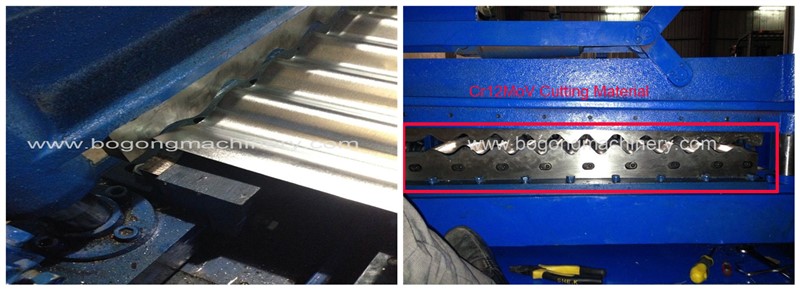

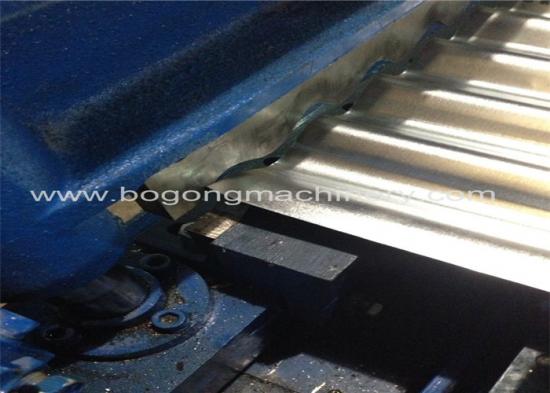

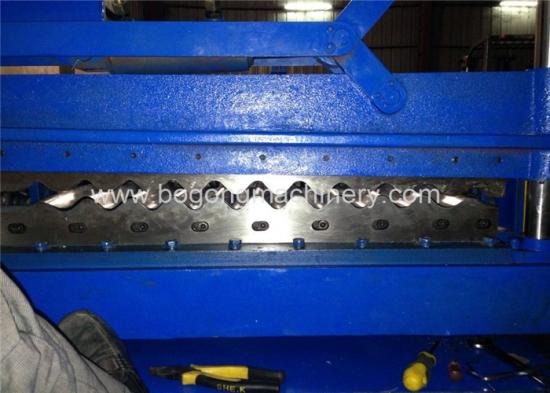

This is the cutting section of corrugated roof panel roll forming machine, two pieces of cutting blades cutting off. The cutting blades are machined by CNC laser, it is for keeping blades each part precision, the more comfort to corrugated sheet sample, the cutting effect will be more beautiful. And the cutting blades are made from Cr12MoV, the hardness is good enough.

Technical Parameters

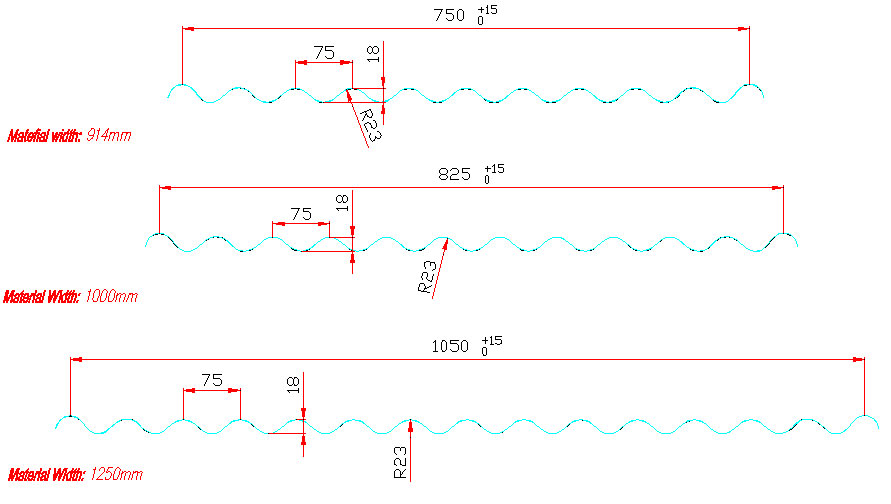

Profile Design Drawing

Raw material thickness: 0.3-0.8mm, raw material width: 1914/1000/1250mm, suitable for pre-painted steel coil, galvanized steel coil.

Need customized any type of roll forming machines, contact us immediately.
