Customized roof sheet/metal doors/purlins/ steel hat profiles roll forming machines are acceptable.

Product Name: 914mm Feeding Width Roofing Corrugated Sheet Roll Forming Machine

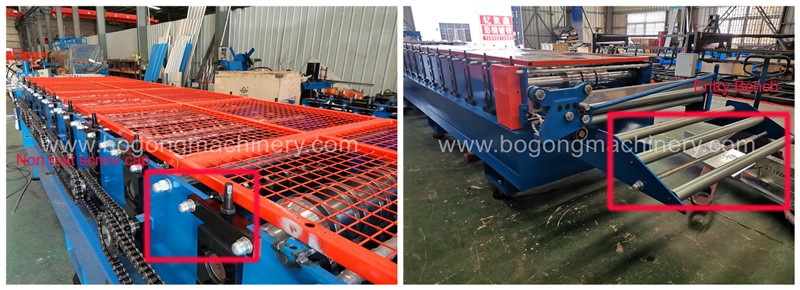

Whole roofing corrugated sheet roll forming machine is matched with entry bench and manual pre-cutter. The entry bench is good for feeding steel coil into roll forming machines and pre-cutter is for cutting off the no used material head.

The pull-rod screws nuts are all made from non-rust material, so whole corrugated sheet roll forming machine look more beautiful and machine performance is more stronger.

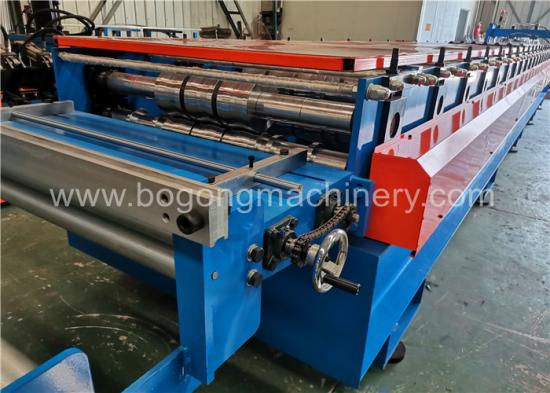

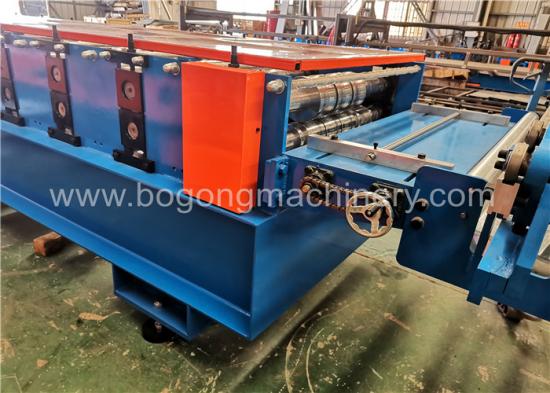

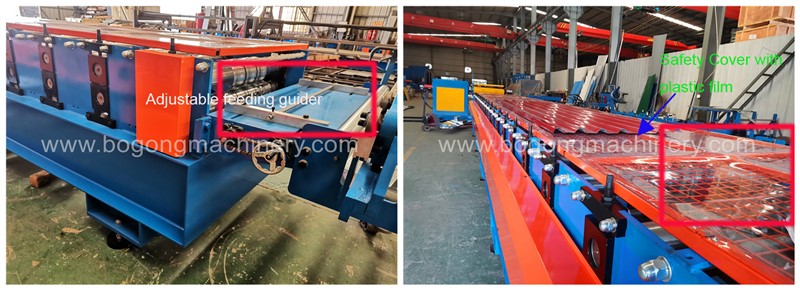

Between manual pre-cutter and roll forming section, there are adjustable feeding guider, when the material width is a little different, we can adjust the feeding strip left or right a little to suit for the actual material width.

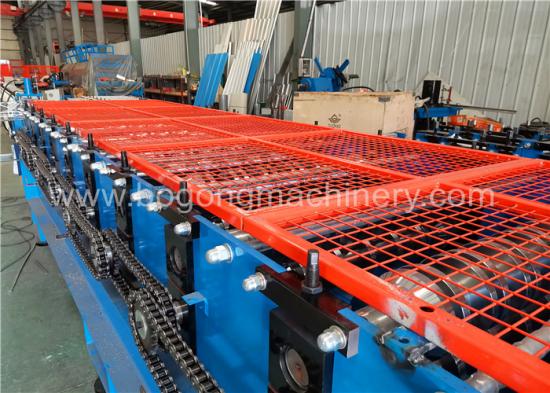

Upon the roll forming section, there is grid type safety cover with plastic film for keep operator safe, also can keep roll forming rollers more cleaner.

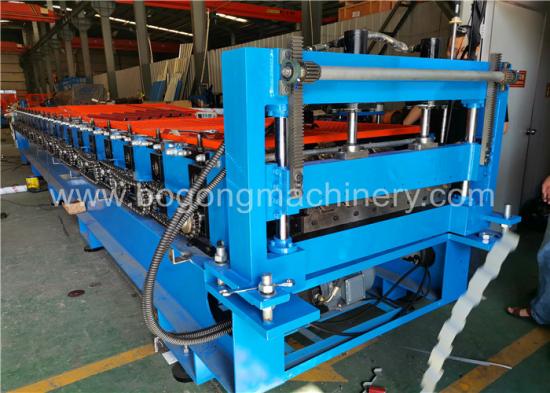

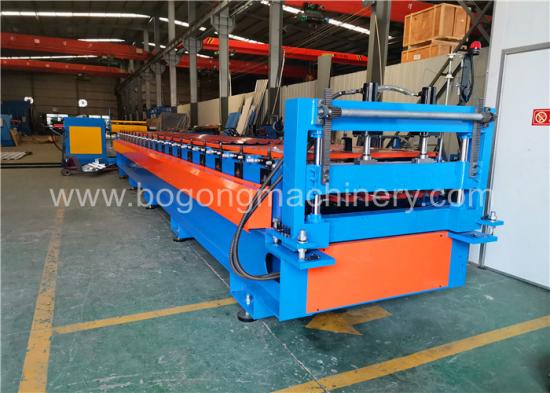

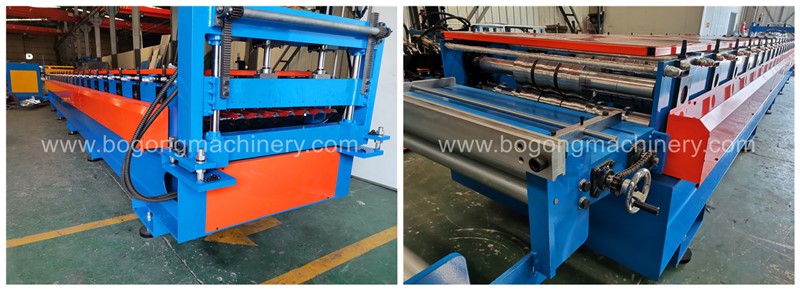

The whole roofing corrugated sheet roll forming machine is for producing 914mm raw material width, the feeding end and cutting end is as below.

Technical Parameters

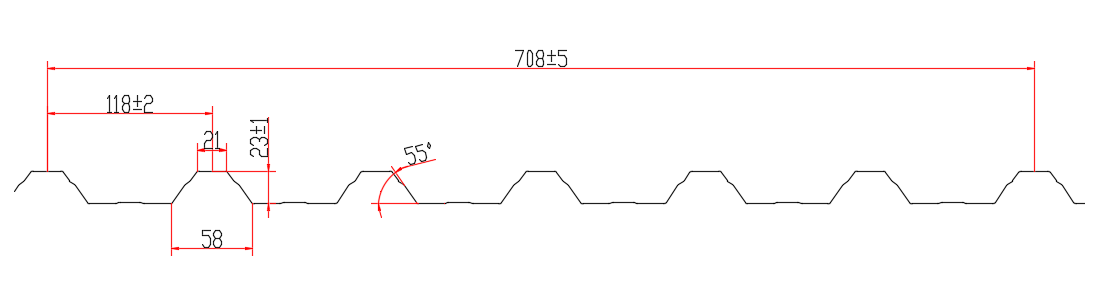

Profile Design Drawing

Raw material thickness: 0.3-0.8mm, raw material width: 1220mm, suitable for pre-painted steel coil, galvanized steel coil.

Need customized any type of roll forming machines, contact us immediately.
