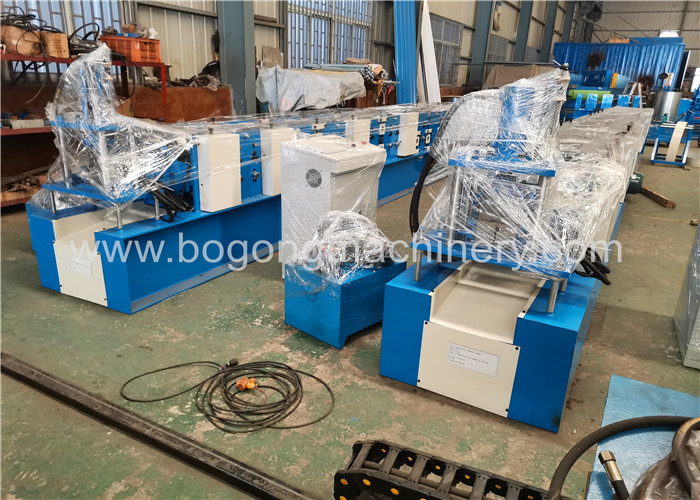

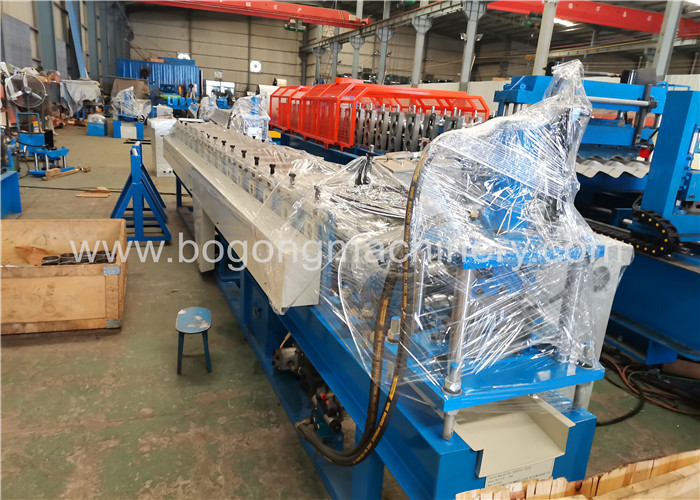

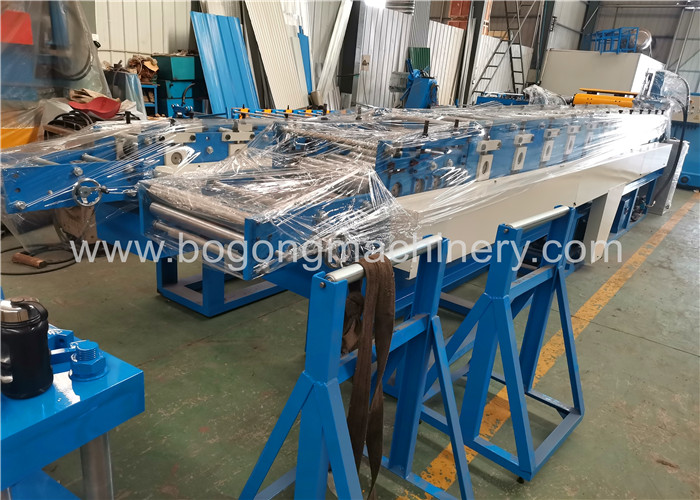

Steel Shutter Door Roller Forming Machines Are Ready For Shipment

This batch steel shutter door roller forming machines includes shutter door forming machine, door rail U shape roll forming machine, shutter door bottom plate profile roll forming machine. These are full set for industrial roller shutter door used.

Shutter door Roll Forming Machine Parameters As Below:

Parameters	Specification
Voltage	380V/50HZ/3PH or customized
Driving Motor	4KW
Forming Steps	15steps
Working Speed	10-15m/min
Thickness for Steel	0.6-1.0mm
Shaft Diameter	65mm
Shaft Material	High grade 45# forged steel
Roller Material	G45# steel, CNC lathe,polished and chrome plated
PLC Cabinet	Schneider, Delta
Encoder	Omron
Sprocket Wheel	45 steel high-frequencies quench
Cut-off System	Post cutting, no waste cutting
Cutting Blade Material	Cr12 steel
Machine Frame Material	Fine welded structural steel;
Raw Material	Galvanized steel
Painted Color	Blue+Orange Or Customization
Overall Size	75009501050mm
Weight	2500KGS

Welcome to contact us for more information about this machine.
