    • Door Roll Forming Machines Shipment For Brazil

    • 2020-01-06

    Door Roll Forming Machines Shipment For Brazil

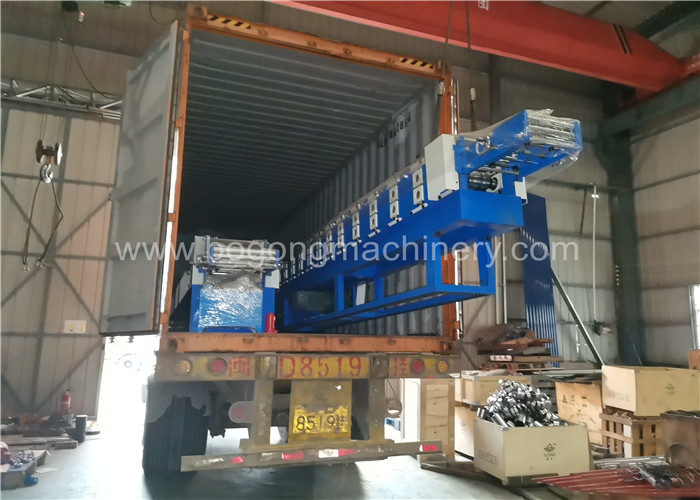

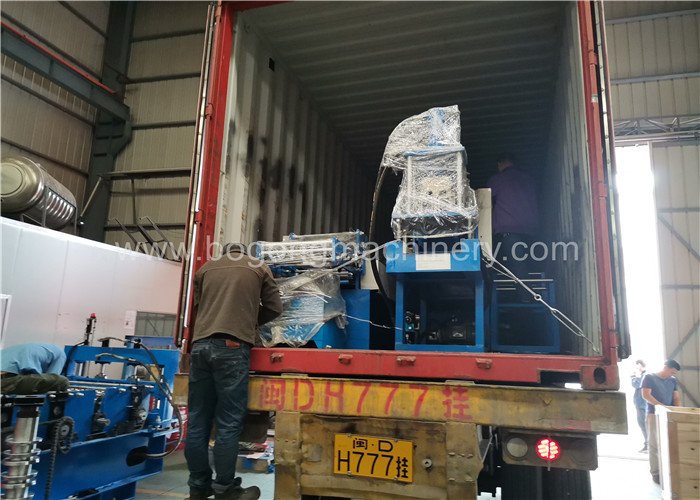

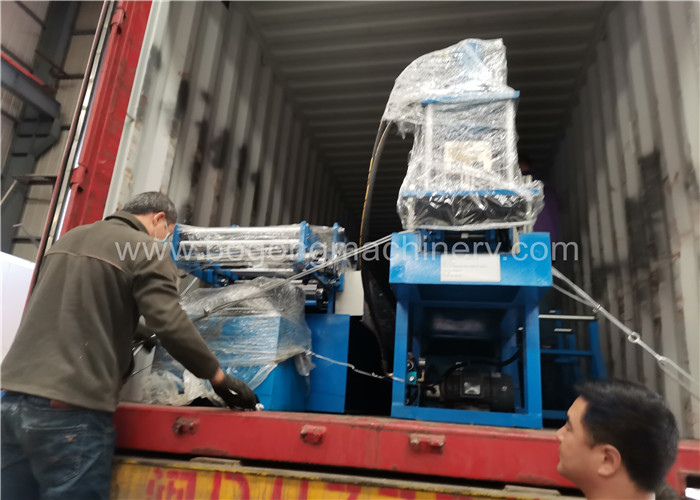

    This our last batch of steel roller shutter door machines containers loading before Chinese new year holiday. Full set door used roll forming machines includes shutter door roll forming machine, door frame roll forming machine, shutter door bottom plate roll forming machines.

    Whole steel plate profile roll forming machine line includes decoiler, straightening device, feeding section, roll forming machine and hydraulic cutting device.





    Technical Parameters



    Parameters Specification
    Voltage 380V/50HZ/3PH or customized
    Driving Motor 5.5KW
    Hydraulic Motor3 KW
    Forming Steps 20 steps
    Working Speed 10-15m/min
    Thickness for Steel 1.0-1.5mm
    Shaft Diameter 75mm
    Shaft Material High grade 45# forged steel
    Roller Material G45# steel, CNC lathe,polished and chrome plated
    PLC Cabinet Schneider, Delta
    Encoder Omron
    Sprocket Wheel 45 steel high-frequency quench
    Cut-off System Post cutting, three pieces of cutting blades
    Cutting Blade Material Cr12 steel
    Machine Frame Material Fine welded structural steel;
    Raw Material Galvanized steel
    Painted Color Blue+Orange Or Customization
    Overall Size 11500*950*1050mm
    Weight 7000KGS
